DISPATCH — JOHANNESBURG 19 AUGUST 2026

You can't put out a fire you can't reach.

A fire burning thirty centimetres underground had defeated the farmers for days. It was extinguished by injection, at a dilution of half of one per cent.

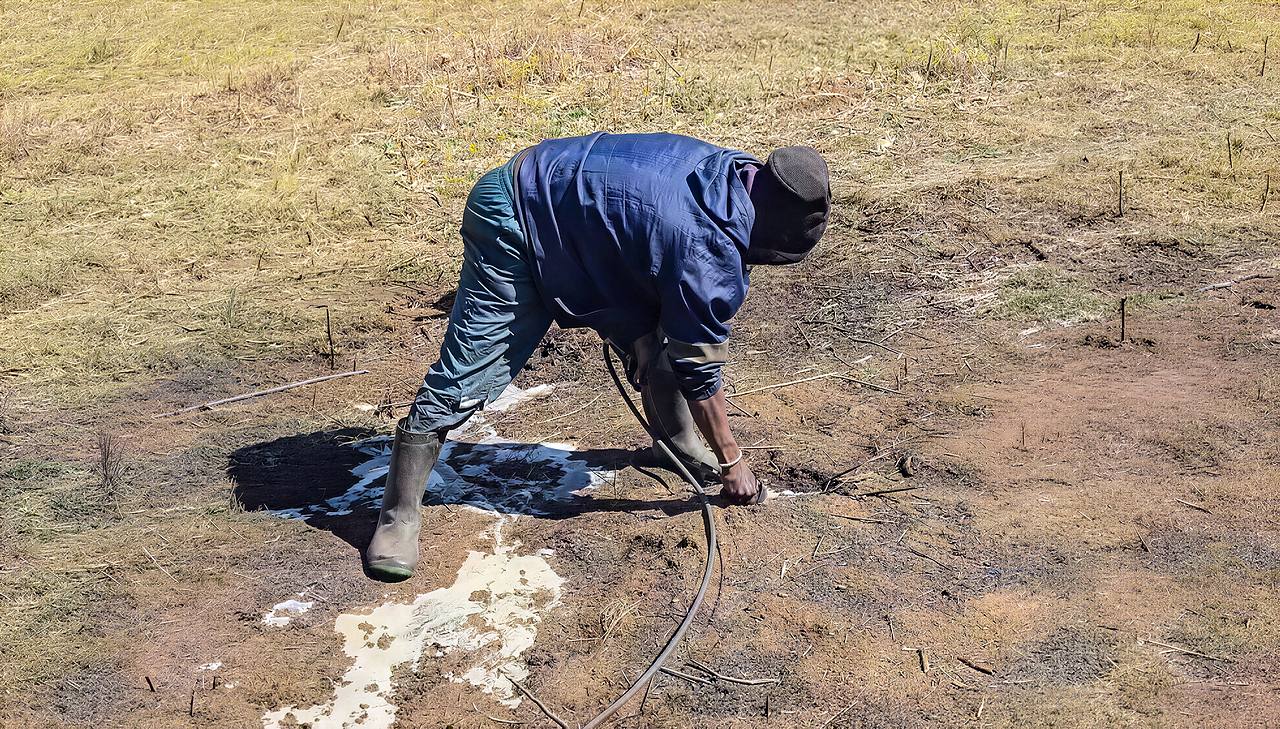

A technician drives a pneumatic lance into smouldering ground outside Johannesburg, delivering Hydra X below the surface.
Thirty centimetres down. The pneumatic lance goes into the ground on a farm outside Johannesburg. Hydra X solution at half of one per cent was injected directly into the burning zone; the pale run-off across the surface is the finishing spray applied afterwards. 19 August 2026. Photograph: The Fire Lab

This morning we were called to a farm outside Johannesburg. A large area of horse manure had caught fire and was burning underground. The farmers had been at it for days and couldn't get it out.

If you've never dealt with one, a deep-seated fire in organic material is a different animal from a fire you can see. There's often no flame at all. It burns slowly, below the surface, at temperatures that persist for weeks. You put water on it and the water runs across the top and drains away. The fire is thirty centimetres below where your water is going.

That isn't a firefighting problem. It's a delivery problem.

So we didn't try to cover it. We went into it.

Five litres of Hydra X concentrate into a thousand-litre water tank — a dilution of half of one per cent. Then we injected that solution into the ground with a pneumatic lance, down to thirty centimetres, into the burning zone itself.

The fire went out. We sprayed water across the surface afterwards to finish the area. It was completely extinguished.

We reached the fire instead of covering it. Every litre went where the combustion actually was. Nothing ran off, because nothing was applied to a surface that sheds water.

Our normal working dilution for fuel and structural fires is six per cent. At 0.5%, one thousand-litre container of concentrate treats two hundred thousand litres of water. Over a large area, that's the difference between a logistics operation you can run and one you can't.

It didn't come back. The surface spray afterwards was housekeeping, not the intervention.

I want to be straight about what this is and isn't. It was an operational job on a live fire, not an instrumented test. Nobody was measuring. And horse manure is not peat.

But what they share is the thing that makes both so hard to extinguish: a smouldering fire in dry, porous organic material that sheds water from above.

That description covers a lot of ground. Peat bogs and moorland. Compost and mulch stockpiles. Silage. Landfill. Coal spoil. Biomass and wood chip stores. Anyone who's stood next to one of these knows the frustration — you apply water for days, the steam looks encouraging, and a week later it's still glowing.

The chemistry isn't complicated. Reduce the surface tension of water and it stops beading and starts wicking into porous material instead of running off it. Take heat out faster and the fuel drops below the temperature it needs to re-ignite, rather than the flame simply being knocked down while the fuel stays hot underneath.

That's what the concentrate does. What today added was the delivery method — and that turned out to be the missing half.

I'd like to see this tested properly, by someone other than us, on real peat, with measurements taken. If you work in wildfire, land management or waste handling and you've got a smouldering fire you can't reach, I'd like to hear from you.

THE PRODUCTS
ATOM and TITAN are the two formats of GASVAC™, our microencapsulated suppression technology. Open any product for the technical detail.

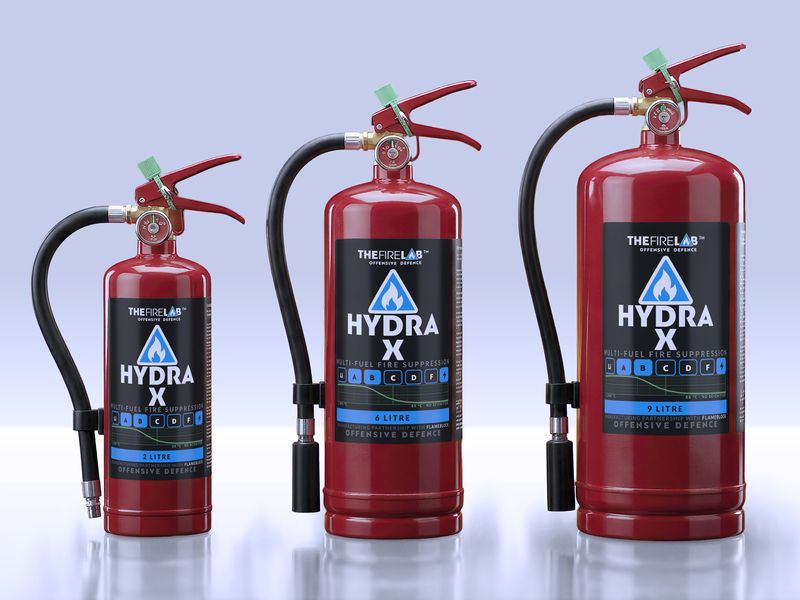

Hydra X

HYDROCARBON, FUEL AND DEEP-SEATED FIRES

A 6% concentrate that changes what a water supply can do — penetration, faster heat removal, and a fire that stays out.

TECHNICAL DETAILCLOSE

Hydra X goes into a standard foam induction system at six per cent and changes the behaviour of the water already on site. It reduces the surface tension of that water so it wicks into porous material instead of beading and running off it, and it removes heat faster, so the fuel drops below the temperature it needs to re-ignite rather than the flame simply being knocked down while the fuel stays hot underneath.

It is intended for lithium-ion and electric vehicle battery fires, hydrocarbon and oil fires, tyre and rubber fires, and industrial suppression systems in mining, logistics and energy. It is fully water soluble and works with foam equipment you already own, so adopting it is a change of concentrate rather than a change of kit.

The formulation is PFAS free. For anyone replacing a fluorinated foam under current or anticipated restrictions, that is usually the first question and it is worth asking us for the composition in writing.

TECHNICAL
Induction rate 6%  ·  Appearance clear light amber liquid  ·  Solubility fully water soluble  ·  Freezing point approx. −13°C concentrate, −3°C diluted  ·  Formulation PFAS free  ·  Storage sealed HDPE-compatible containers

Handling. Hydra X is a concentrate and is handled like one. It carries an eye irritation classification, so gloves and eye protection when decanting or proportioning. The full safety data sheet, composition included, goes out with every enquiry.

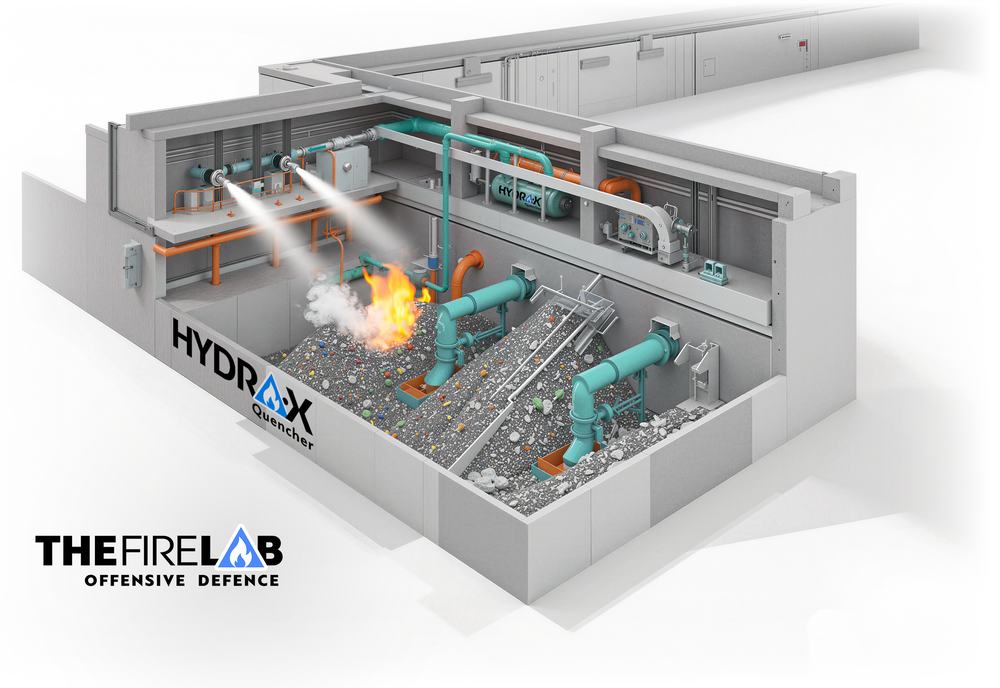

Technical cutaway of a waste bunker fitted with a fixed Hydra X system. Two ceiling-mounted monitors discharge onto a fire in the tipping pit, fed by distribution pipework from the plant deck above.
A fixed installation over a waste bunker. Ceiling-mounted monitors discharge onto the fire in the tipping pit, fed at six per cent from the plant deck above. The same concentrate runs through fixed systems, appliances and hand lines.

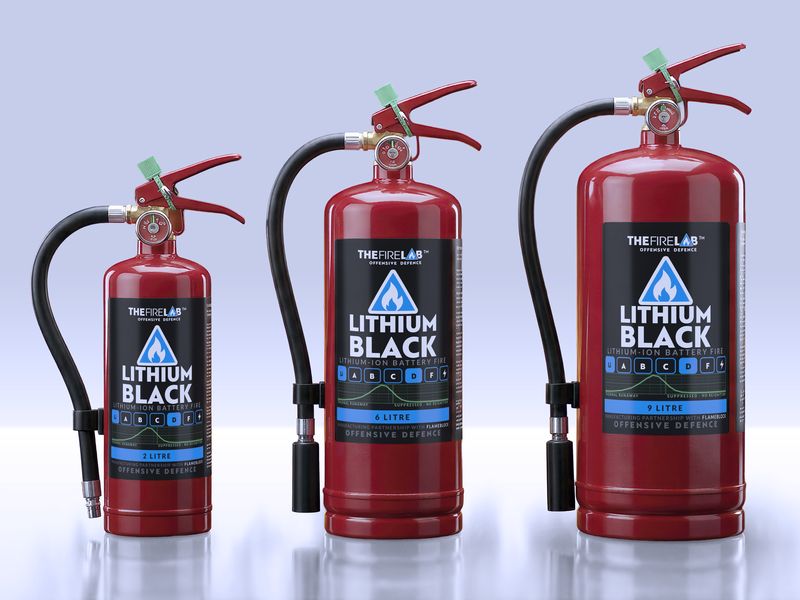

Lithium Black

LITHIUM BATTERY FIRES

Suppresses the flame, cuts the toxic off-gassing, then cools cells individually so heat cannot transfer to the neighbouring cell.

TECHNICAL DETAILCLOSE

A lithium-ion battery fire sustains itself. It generates its own heat, liberates its own oxygen from the metal oxides in the cell, and carries its own combustible electrolyte. Cooling the outside of the pack does not reach any of that.

Lithium Black is a mineral-based agent, not a polymer gel. Natural minerals and dissolved organic and inorganic salts bond ionically to form a three-dimensional structure that is gel-like at rest and thins under pressure, so it pumps and sprays but stays where it lands. It works on three fronts at once: it absorbs heat rapidly and keeps cooling, it lays down a layered mineral coating that excludes oxygen, and it introduces natural antioxidant compounds that quench the free radicals driving the combustion cycle.

The residual coating is doing work after the fire is out. It should not be washed off.

TECHNICAL
Appearance black viscous liquid  ·  Rheology gel at rest, shear-thinning under pressure  ·  Polymer content none  ·  Shelf life minimum 36 months  ·  Storage below 30°C  ·  Standard packaging 6 litre pressurised extinguisher
INDEPENDENT TESTING Suppression testing at Ignis Lab, Cape Town, September 2024. Third-party review by Professor Richard Walls, Stellenbosch University, September 2024. Extinguisher testing to NTA 8133 by M-Lab in the Netherlands, February 2026, on a nine-litre unit. Reports available on request.

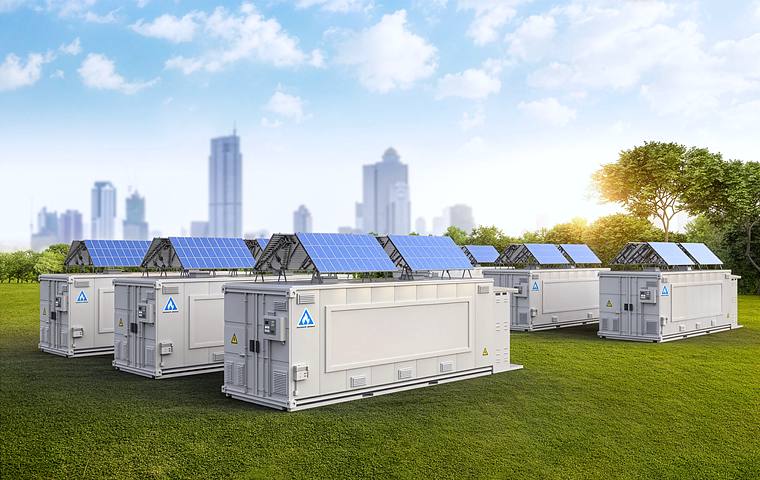

A row of containerised battery energy storage units with solar arrays mounted above them, on the edge of a city.
Containerised storage with solar. The risk arrives with the cells, not the weather.
WHERE IT IS USED
Battery energy storage installations  ·  electric vehicles and charging infrastructure  ·  data centres and UPS rooms  ·  battery manufacturing and storage  ·  waste and recycling, where damaged cells arrive hidden in the stream

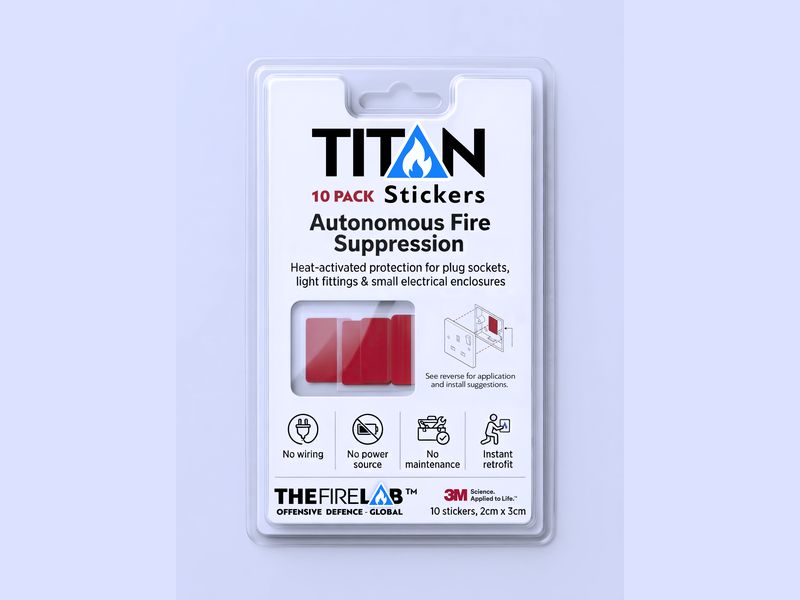

TITAN

CABINETS, PANELS AND ENCLOSURES

A pad fixed inside the enclosure. No power, no wiring, no detection. Discharges clean agent at the seat of the fire.

TECHNICAL DETAILCLOSE

Most electrical fires start inside something — a distribution board, a switch box, a control panel, a server cabinet. By the time a detector in the ceiling has noticed, the fire has had the run of the enclosure and everything in it.

TITAN is a self-adhesive pad fixed inside that enclosure, next to the thing likely to fail. It has no power supply, no wiring, no sensor and no service interval. The polymer microcapsules in it rupture at around 120°C and release the agent at the seat of the fire, inside the box, before anything outside has reacted.

It is dielectric and non-conductive, so it can be fitted alongside live equipment, and it works in humid or smoke-filled conditions and during a power cut, because it does not depend on anything electrical. Suppression happens capsule by capsule, so a pad is not spent by a single event.

TECHNICAL
Activation approximately 120°C  ·  Electrical dielectric, non-conductive, safe near live equipment  ·  Services required none — no power, sensors, wiring or maintenance  ·  Formats self-adhesive pads in several sizes

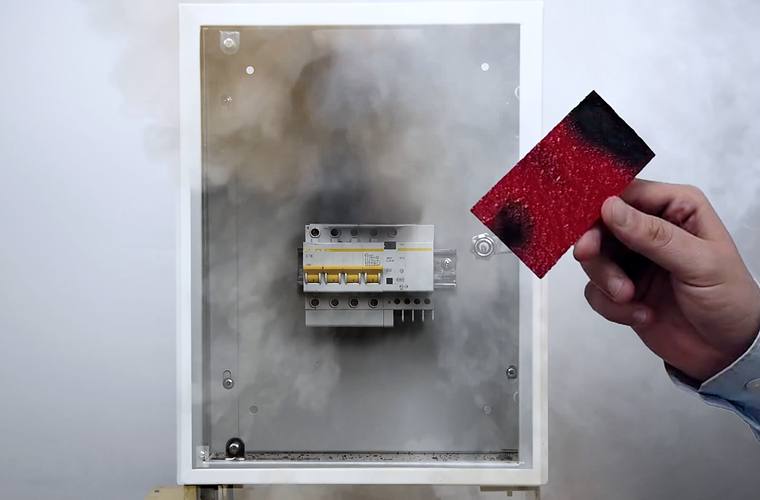

A distribution board filled with smoke after a fire inside it, with a scorched TITAN pad held up beside the open enclosure.
After the event. The pad has discharged inside the enclosure and the board is still standing.
TYPICAL LOCATIONS
Distribution boards and consumer units  ·  switch boxes and control panels  ·  server and comms cabinets  ·  UPS enclosures  ·  cable trenches  ·  battery packs and charging cabinets

ATOM

COATINGS FOR VEHICLES AND PLANT

Microencapsulated agent mixed into the coating, activating at the point of heat and drawing heat out as it extinguishes.

TECHNICAL DETAILCLOSE

ATOM is the same suppression technology as TITAN, supplied loose. The microcapsules come in bulk or as an additive to be mixed into paints and coatings, so the protection goes onto a surface rather than into a box.

That matters where there is no enclosure to protect — the underside of a vehicle, a run of plant, a steel structure, a cable trench, a server room floor. The coating does an ordinary job in ordinary conditions: it is hard, wear resistant, weather and UV resistant, and it protects the substrate from corrosion. It only becomes a fire suppression system at the moment the surface gets hot enough.

It goes on by spray, brush or roller in two or three coats, cures at room temperature and is surface dry within about two hours.

TECHNICAL
Trigger temperature 110°C ±10  ·  Film thickness 50–200 μm  ·  Operating range −40°C to 70°C  ·  Drying surface dry ≤2h, full dry ≤24h, full cure 7 days  ·  Durability salt spray 1,000 hours, water resistance 240 hours, hardness ≥2H  ·  Substrates steel, aluminium, concrete, wood, plastic, glass, ceramics  ·  Shelf life 2 years
WHERE IT IS USED
Vehicles and rail cars  ·  industrial equipment and precision machinery  ·  server rooms and data centres  ·  chemical tanks, reactors and pipelines  ·  steel structures and heritage buildings  ·  archives, libraries and vaults

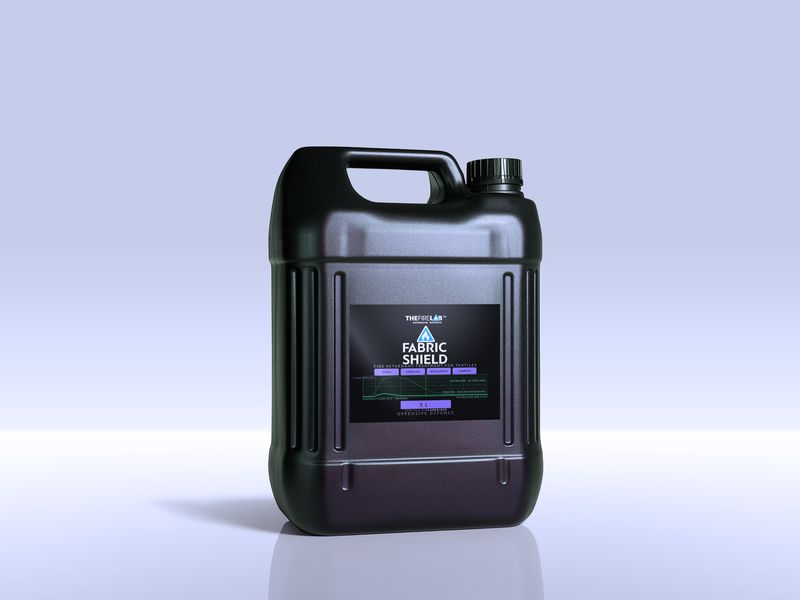

Fabric Shield

TEXTILES AND SOFT FURNISHINGS

Treated material carbonises rather than sustaining flame — stopping spread and buying evacuation time.

TECHNICAL DETAILCLOSE

In a room fire, soft furnishings are usually what turns a contained incident into a room fully involved. Curtains and upholstery carry flame up and across faster than anything else in the space.

Fabric Shield is a clear, water-based retardant sprayed onto the textile. It dries to an invisible barrier and does not change the colour, texture, drape or feel of the material, which is the practical objection most people have to treating a fabric at all. Treated material carbonises rather than sustaining flame, so the fire stops travelling and the people in the room get their evacuation time back.

It is odourless once dry and safe for indoor use, and protection lasts up to three years in normal conditions before retreatment.

TECHNICAL
Appearance clear liquid, viscosity similar to water  ·  pH 6.5–7.5, neutral  ·  Density approx. 1.0 g/cm³  ·  Flash point none, non-flammable  ·  Durability up to 3 years under normal conditions
TYPICAL APPLICATIONS
Curtains, drapes and upholstery  ·  carpets and wall fabrics  ·  tents, marquees and exhibition fabrics  ·  stage and theatre curtains  ·  decorative textiles in hotels, schools and public buildings

Mastic

CABLE PENETRATIONS AND SERVICE OPENINGS

Seals the openings through which fire and smoke actually travel between compartments, keeping fire-rated walls and floors intact.

TECHNICAL DETAILCLOSE

A fire-rated wall is only rated until somebody drills through it. Cables, conduits and services are added and moved throughout a building's life, and every hole is a route for fire and smoke into the next compartment. The compartmentation on the drawings and the compartmentation in the building are rarely the same thing.

Mastic is a water-based fire stop coating for sealing those openings — around cable and conduit penetrations, through-wall and floor openings, and construction joints. It goes on by brush, roller or spray, adheres to most common building substrates, and cleans up with water before it cures. It is low VOC and suitable for use indoors.

It is maintenance work rather than a product installation, and it is the cheapest fire safety intervention in most buildings.

TECHNICAL
Appearance white coating  ·  pH approx. 7  ·  Density 1.29–1.32 g/cm³  ·  VOC low, compliant with indoor air quality requirements  ·  Packaging 20 kg sealed containers  ·  Shelf life 12 months unopened at 5–35°C
TYPICAL APPLICATIONS
Fire-stopping around cables, conduits and service penetrations  ·  sealing through-wall and floor openings  ·  fire barriers in walls, ceilings and floors  ·  maintaining fire-resistive construction details

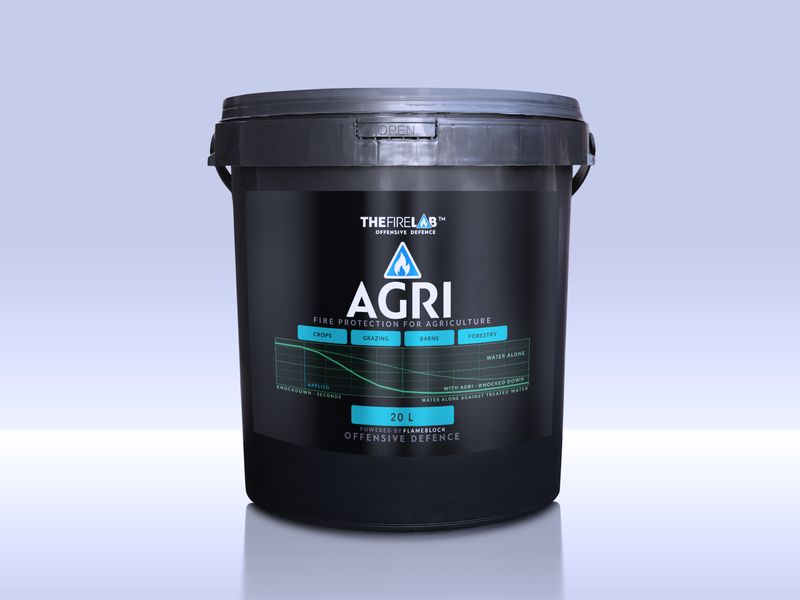

AGRI

CROPS, GRAZING AND FARM STRUCTURES

Holds water in vegetation and soil so a treated strip stays wet after the tanker has moved on.

TECHNICAL DETAILCLOSE

A farm fire has everything in its favour. The fuel is dry, it is continuous, and it is spread over a distance no fire service can cover quickly. By the time an appliance arrives the fire has usually decided the outcome.

AGRI changes what a water bowser can do. It lowers the surface tension of the water so it penetrates scrub and grass instead of sitting on top of them, and it holds moisture in the vegetation and the soil for longer, so a strip stays protected after the tractor has moved on. That turns a tanker into something that can lay a line rather than chase a front.

It is used on crop fields and forestry edges, around barns, silos and stores, and across grazing land — the places where a farm's year is kept.

TECHNICAL
Action reduces surface tension for penetration into scrub and grass  ·  Retention improves water absorption and retention in vegetation and soil  ·  Application through standard farm bowsers, booms and knapsacks

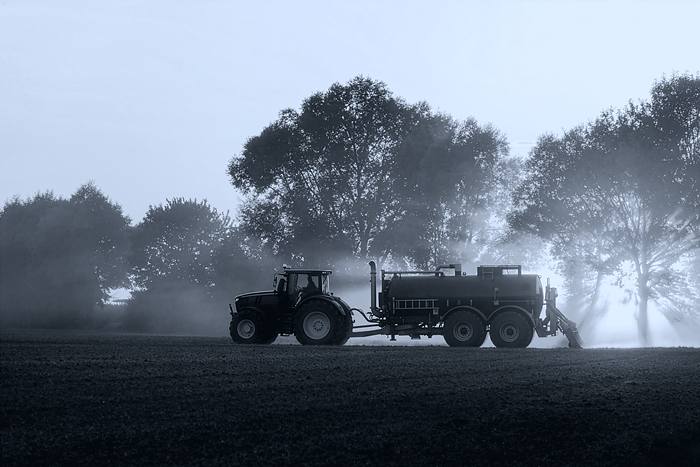

A tractor drawing a tanker across a field at dusk, spray drifting behind it.
Laid from a standard bowser. The equipment is already on the farm.
WHERE IT IS USED
Crop fields and stubble  ·  forestry edges and firebreak lines  ·  barns, silos and machinery stores  ·  grazing land and livestock zones  ·  hay and silage stacks  ·  golf courses and high-value landscaped grounds

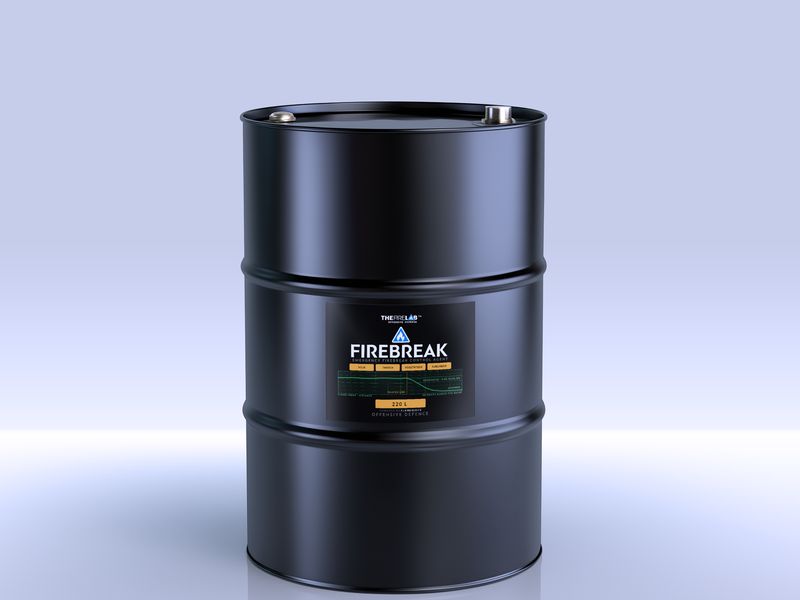

Fire Break

VELD, PLANTATION AND STUBBLE

Treats a strip of ground so the fire arrives at it and stops, without cutting or burning a break first.

TECHNICAL DETAILCLOSE

Fire seasons are getting longer at both ends, and every El Niño turns that dial further. Forecasters predict the next one will be severe, and it will find ground drier than the last.

A firebreak works by taking the fuel away — ploughing it, cutting it, or burning it deliberately before the season. All three cost land, time and a window of dry weather, and a burnt break is itself a fire you have to control.

Fire Break treats the fuel instead of removing it. Applied to a strip ahead of an advancing fire, or laid in advance across the lines you want to hold, it leaves the vegetation standing and unwilling to burn. The fire reaches the treated ground and runs out of anything to do.

It is intended for veld fires in savannah grassland and Mediterranean scrub, for large-scale arable where a fire in standing maize moves faster than machinery, for commercial plantations in the paper and pulp industry, and around timber and wood product yards. Across Africa and Australia, millions of hectares of farmland go every year.

TECHNICAL
Use applied ahead of a fire, or on chosen lines before the season  ·  Environmental biodegradable  ·  Transport no regulations apply; not classified as hazardous  ·  Packaging 5 and 20 litre buckets  ·  Storage dry and cool, below 30°C, out of direct sunlight

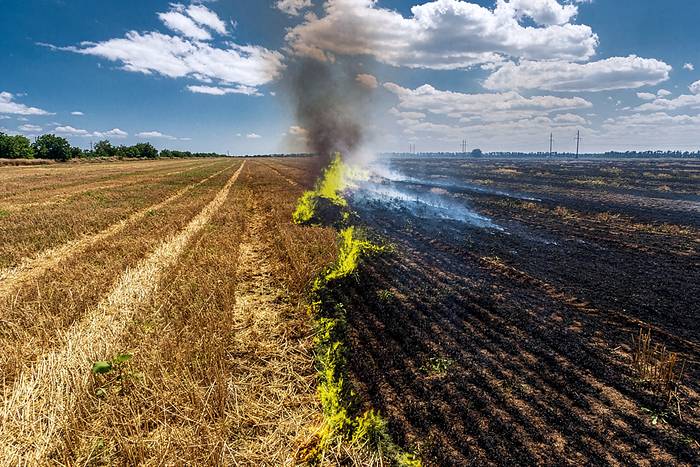

A stubble fire burning along a line across a field, with blackened ground on one side and untouched stubble on the other.
The whole job, in one picture. Everything depends on where the fire is asked to stop.
WHERE IT IS USED
Savannah grassland and Mediterranean scrub  ·  large-scale arable, maize and cereals  ·  commercial plantations, paper and pulp  ·  timber yards and wood product manufacturing

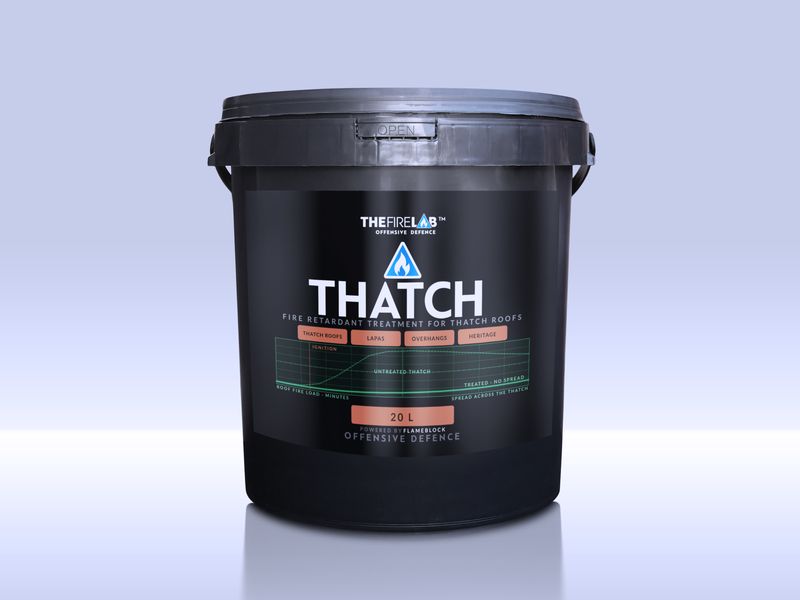

THATCH

THATCHED ROOFS

A surveyed and sprayed treatment for the one roof covering that is made entirely of dry grass.

TECHNICAL DETAILCLOSE

A thatched roof is a substantial volume of dry grass sitting directly over the space people live in. It is also, usually, the most valuable thing about the building. Insurers know both facts, which is why thatch is priced the way it is.

THATCH is not a tin you buy and apply yourself. It is a survey followed by an application, done by trained contractors, and the survey matters as much as the spray. The roof is checked first — that the thatch is at least 175 millimetres thick, that rafters are no more than 900 millimetres apart and laths no more than 250, that the layer is properly compacted and the binding is tensioned, and that the structure is sound. A treatment laid over a roof in poor condition is money spent twice.

Application is by airless sprayer, outside first, in dry weather, finishing in good time before the temperature drops so the treatment cures properly. Quantity is calculated from roof area rather than guessed.

TECHNICAL
Delivered by trained contractors, not sold for self-application  ·  Minimum thatch thickness 175 mm  ·  Rafter spacing not more than 900 mm  ·  Lath spacing not more than 250 mm  ·  Coverage approximately 1.2 litres per m² of roof, 1.4 on an older roof  ·  Application airless spray, dry weather only
WHERE IT IS USED
Thatched houses and cottages  ·  lodges, lapas and boma roofs  ·  hotels and game reserves  ·  restaurants and event venues  ·  heritage and listed buildings
WHY IT IS A SERVICE
The survey decides whether the treatment will work at all. Thickness, compaction, spacing and the condition of the structure all change the answer, and none of them can be judged from the ground.

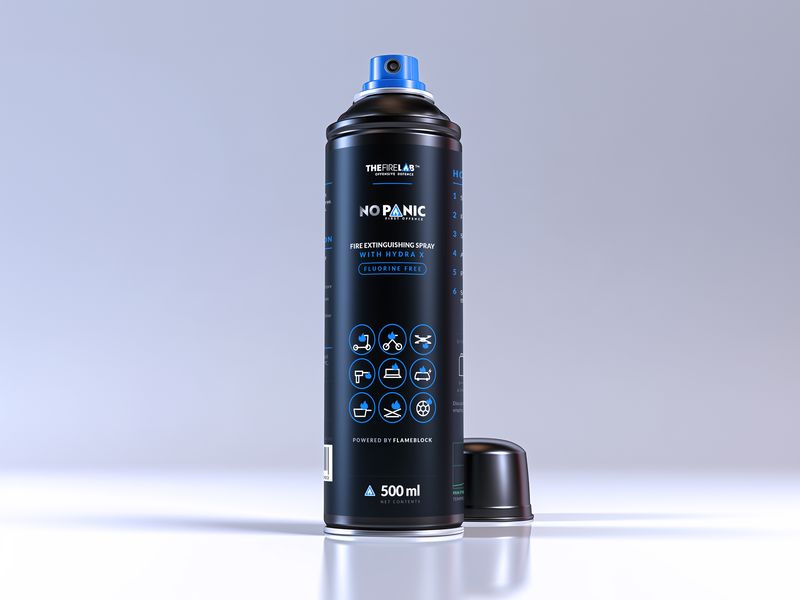

NoPanic

PAN AND FAT FIRES

Take · Slide · Stop. A single-action answer to the most common fire in any commercial or domestic kitchen.

TECHNICAL DETAILCLOSE

A pan fire is the most common fire there is, and the usual responses all cost more than the fire does. An extinguisher discharges powder across the whole kitchen. A suppression system over the range trips and shuts the kitchen for the rest of the service. Both are proportionate to a fire that is, at that moment, the size of a saucepan.

NoPanic is a sealed sachet kept in a drawer. Take it out, slide it into the edge of the burning pan, and the fire goes out. There is no residue to clean, no system to reset and no chemical clean-down. The pan is washed and used again.

Shelf life is five years, so it sits in the drawer without becoming another thing to service.

TECHNICAL
Format sealed single-use sachet  ·  Method slide into the edge of the pan  ·  Residue none  ·  Shelf life 5 years  ·  Servicing none

By design. The sachet is never opened and the contents are never handled. It goes into the pan sealed, works in seconds, and leaves nothing to clean up. Nothing to aim, nothing to mix, nothing to reset. Safety data sheets are available for specifiers who need them.

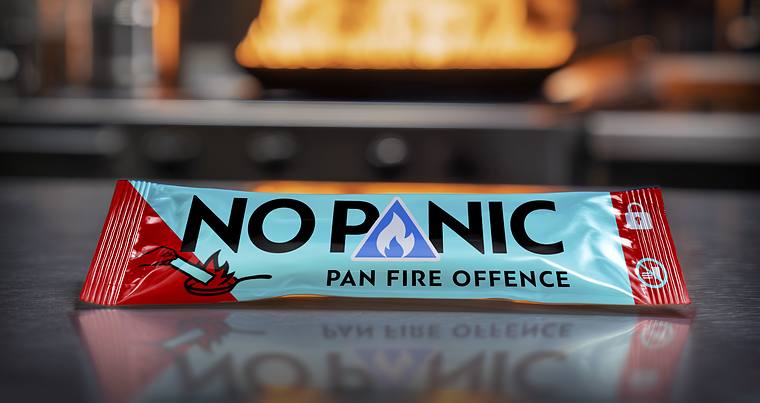

A sealed NoPanic sachet lying on a stainless steel worktop in a commercial kitchen.
One sachet, one action. It lives in the drawer, not on the wall.
WHERE IT IS USED
Commercial kitchens and restaurants  ·  hotels and catering  ·  staff kitchens and canteens  ·  student and rental accommodation  ·  domestic kitchens  ·  galleys afloat

GASVAC™

THE TECHNOLOGY BEHIND ATOM AND TITAN

Polymer microcapsules that rupture at the point of thermal failure and release clean agent exactly where the heat is.

TECHNICAL DETAILCLOSE

Conventional suppression is a system: a detector notices, a controller decides, a valve opens, and an agent floods a volume. Every one of those steps is a thing that can be late, or wrong, or unpowered.

GASVAC removes the system. The agent is held inside polymer microcapsules dispersed through a coating or a pad. Below the trigger temperature the capsules are simply part of the material — a hard, wear and corrosion resistant film that also happens to be full of extinguishant. At the trigger temperature the shells rupture and release the agent precisely where the heat is, while the matrix around them forms a gel-like thermal barrier. Chemical suppression and physical isolation, in one material, with no decision to make and nothing to power.

The capsule shells are engineered to survive ordinary life. They are rated to a compressive strength of 10 MPa and resist pH from 1 to 13, so they tolerate impact, washing and industrial atmospheres without releasing. There are no halogenated hydrocarbons and no heavy metals, and the agent leaves no residue and causes no corrosion.

TECHNICAL
Trigger temperature 110°C ±10  ·  Response 3–5 seconds  ·  Capsule shell compressive strength ≥10 MPa, resistant to pH 1–13  ·  Capsule size 5–50 microns  ·  Loading 70–90 wt%  ·  Residue none, non-corrosive  ·  Electrical non-conductive
THE TWO FORMATS
TITAN — the capsules in a self-adhesive pad, for cabinets, panels and enclosures.  ·  ATOM — the capsules in bulk or as a paint additive, for surfaces, vehicles, plant and structures.

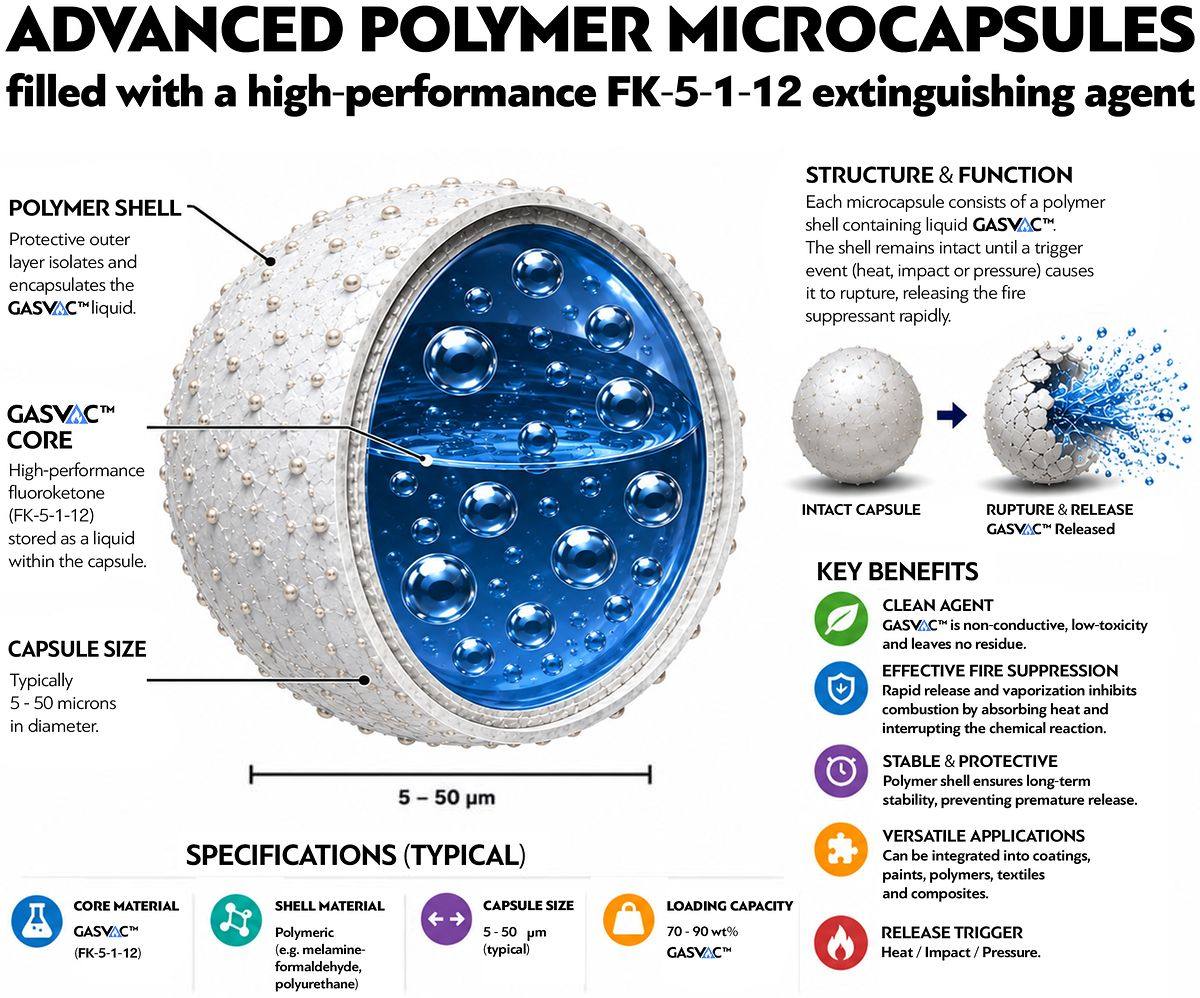

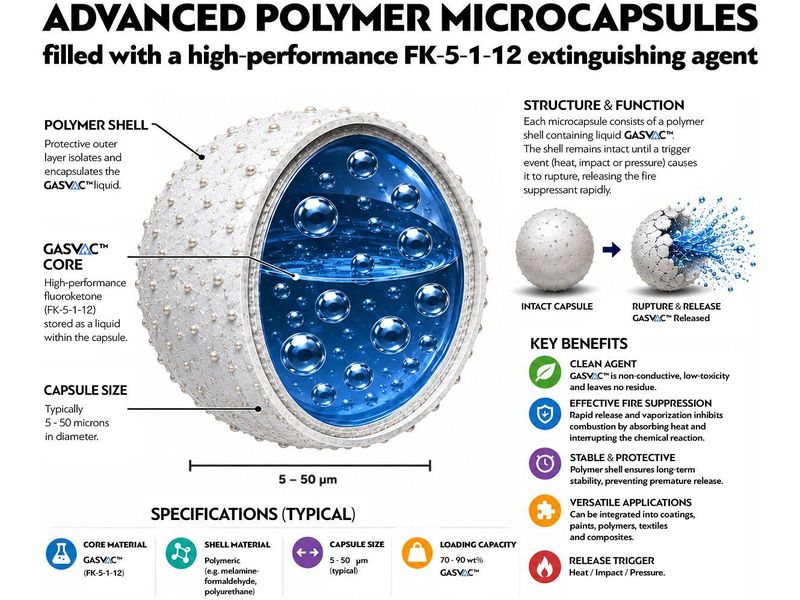

Technical diagram of a GASVAC microcapsule. A cutaway shows the polymer shell enclosing the liquid fluoroketone core, labelled with shell, core and capsule size. Alongside, an intact capsule and a ruptured one releasing the agent, and a panel of key properties.
The capsule, cut away, and what happens to it. Typically five to fifty microns across, and there are millions of them in a coated surface.
WHERE IT IS USED

Military and defence

Armoured platforms, drones, field operations

Oil, gas and fuel storage

Terminals, depots, filling stations

Battery energy storage

BESS installations and charging infrastructure

Power and renewables

Substations, switchyards, solar and wind

Waste and recycling

Where water alone means contaminated runoff

Wildfire, peat and land

Moorland, bog, stubble and stockpiles

TECHNICAL LIBRARY

Technical data sheets, safety data sheets and independent test reports are available for every product in the range, on request to specifiers, distributors and insurers.

Lithium Black has been tested to NTA 8133 by M-Lab in the Netherlands, independently reviewed by Professor Richard Walls at Stellenbosch University, and suppression tested at Ignis Lab in Cape Town. We will send you those reports in full rather than quote from them.

Ask us for the current certification position on any product in your market and we will give it to you in writing.
